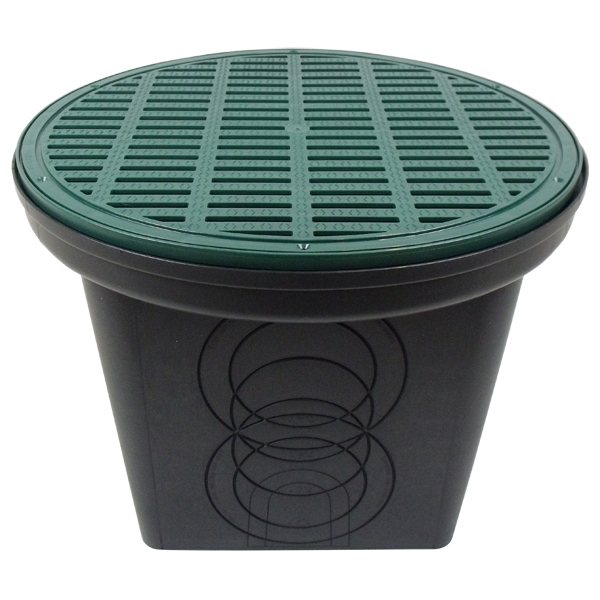

20" Round Catch Basins
SKU
prod-283
We have your solution to all of your drainage needs with our new 20" Drain, Valve, & Meter Box! This box is great for large applications such as golf courses but is also a suitable size for the home. There's no need to worry about different colored fittings or plugs to inventory because as well as accepting 2", 3" & 4" pipe, our box can also accept 6" pipe. Our 20" Round Catch Basins will also accept Polylok 20" Risers so you can easily bring the Drain Box to grade. It is the most versatile Drain Box available on the market today!
U.S. Patent No# 6,666,349 & 6,817,631
U.S. Patent No# 6,666,349 & 6,817,631
- Easy to install
- Accepts risers to bring to grade
- Accepts 6", 4", 3" & 2" pipe
- Pipe can be installed at various heights
-
Installation Instructions:
1. Carefully cut out required opening in the box with a knife.
2. Install seal from INSIDE the box.
3. Screw on the nut from OUTSIDE the box.
4. Tighten to provide a watertight seal.
5. Remove the correct size tear out on the seal. TEAR OUT- DO NOT CUT OUT.
6. Slide the pipe into the seal.
7. Snap the stabilizing feet into the sockets at the base of the box. (12" only)
-
Special Instructions for Installing 4" Corrugated Pipe Only:
1. Remove the 4" TEAR OUT on the seal. TEAR OUT DO NOT CUT OUT.
2. Carefully cut between raised ribs on back of seal in all 4 places.
3. Push corrugated pipe into seal.
