Pre-Assembled Pump Basin

Buy Now
SKU
prod-161
Tired of assembling your own pump basins? You don't have to! Polylok now offers a pre-assembled pump basin that includes everything you need from the effluent pump to the heavy duty cover. This all inclusive unit comes ready to hook-up. It is made of high density polyethylene and is light weight, compact and ready for installation.
  • Installation is easy too! All you need to do is connect the inlet and outlet pipes and you're ready to go.
  • Our design also offers a unique feature that allows you to add risers to reach your desired height.
  • Our pre-assembled pump basin is ideal for busy installers working in residential or commercial settings.
  • The unit is easy to install, easy to access and easy to disconnect for future servicing.
  • Pre-assembled and ready for plug in.
  • Lightweight, robust and durable construction.
  • Easy access to internal components.

    • The Pump Station includes the following components:
    1. Basin and Heavy Duty Cover
    2. 4/10 Horse Power (.4HP) Effluent Pump
    3. On/Off Floats
    4. Alarm Float (All Preset)
    5. Piping System (Includes Flexible Piping, Ball Valve, & Quick-Connect Coupling)
    6. Alarm Panel
    7. Junction Box (With All Watertight Connectors)

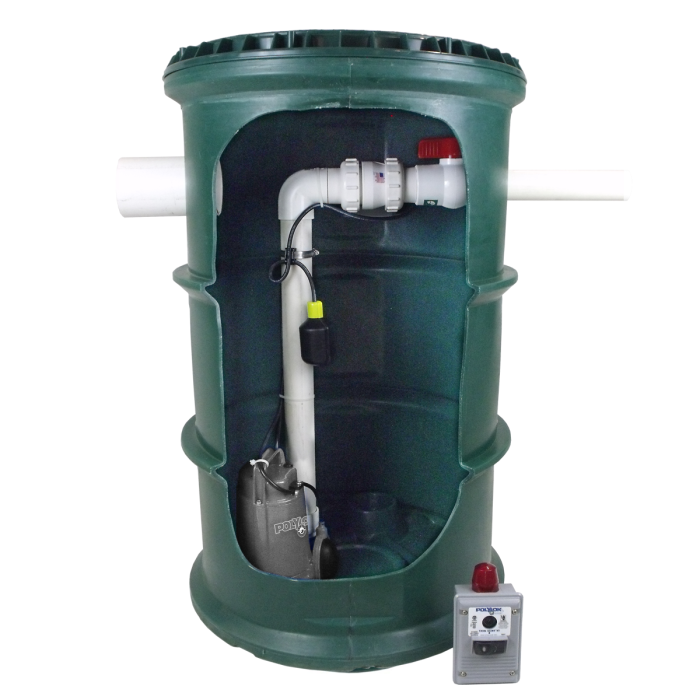

main product photo
