EQUALIZER

EQUALIZER ADJUSTMENT INSTRUCTIONS

djustment Instructions - Easy as 1-2-3

1. Insert one Equalizer unit into each D-Box outlet pipe

as in Fig 1 with the adjustment knob positioned on top.

2. Rotate all adjustment knobs counter-clockwise to the

full DOWN position.

3. Add water into the D-Box until reaching the weir

openings of the Equalizers as shown in Fig 2. Using the

water as a level, observe which outlet sits highest in the

D-Box and do not adjust the Equalizer fitted to that

outlet. Rotate all remaining Equalizer knobs clockwise,

moving the weir plate UP to match the level of the

highest Equalizer. Fine tune by slowly adding water to

make sure all weir opening outlets are at the same level

CAUTION:

If a D-Box is out of level more than 3/8” (6 Clicks),

relevel the box and start again.

For equal flow to all trenches.

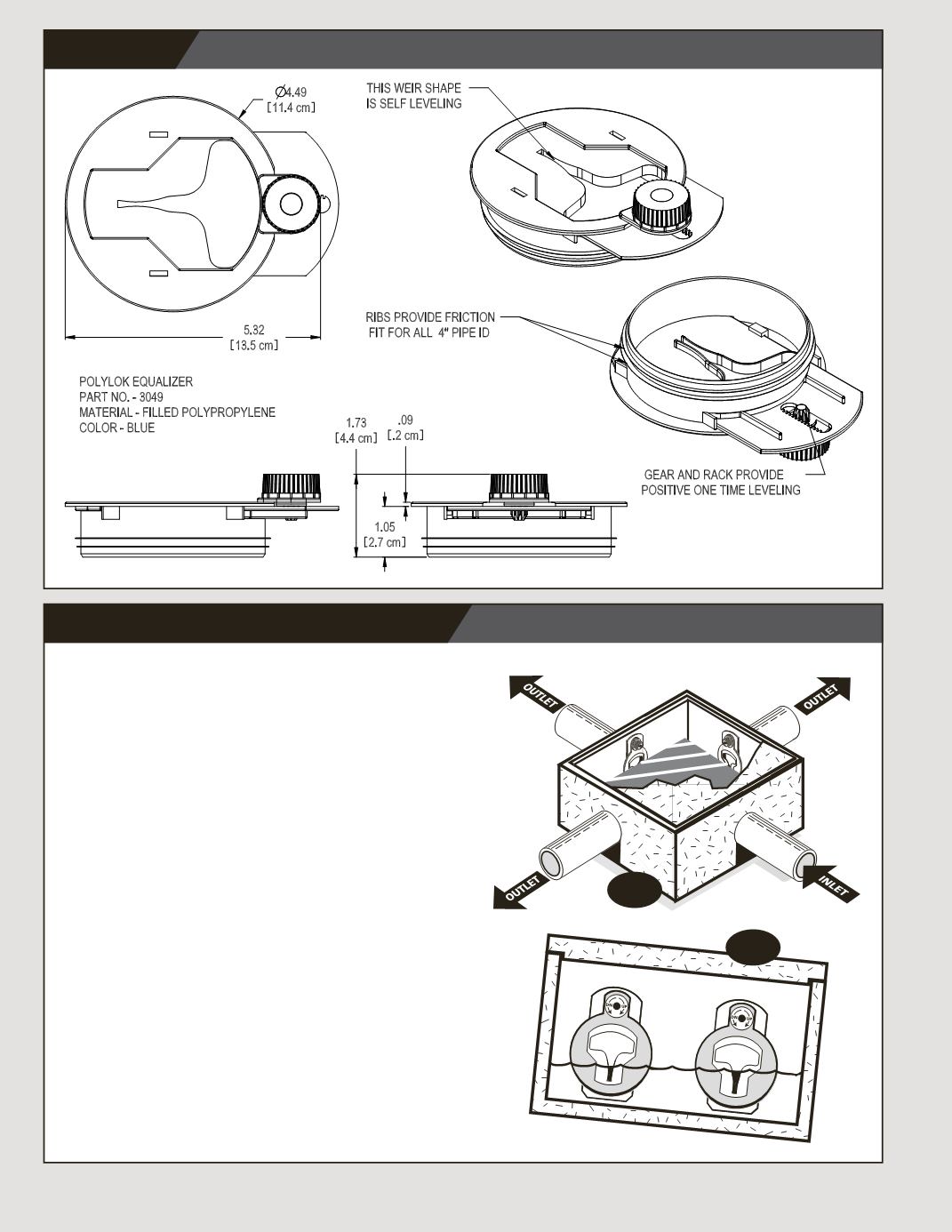

FIG 1

FIG 2
