TECHNICAL SPECIFICATIONS: PAGE 88
UV DISINFECTION UNIT & HIGH PRESSURE FILTER

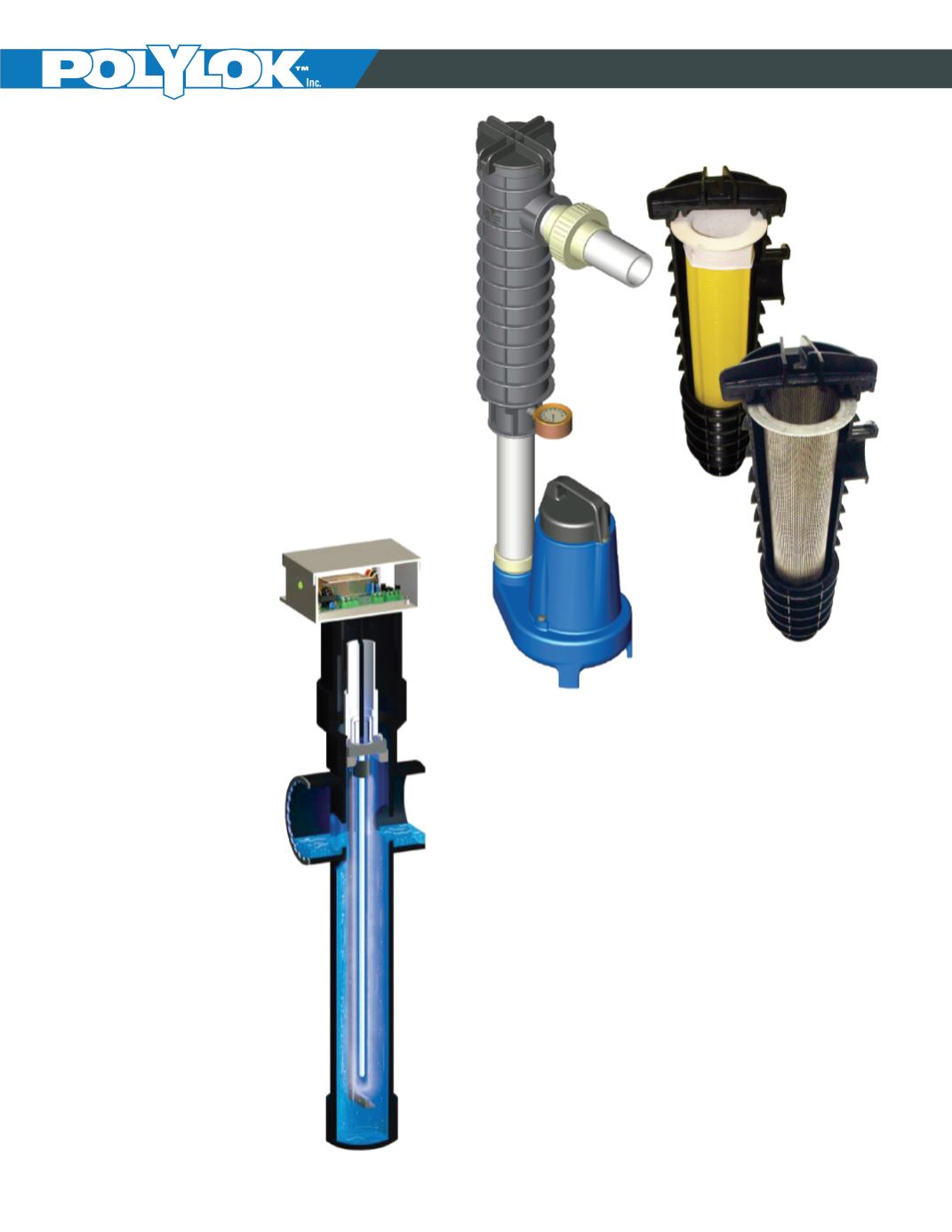

PL-UV1 UV DISINFECTION UNIT
Your complete solution to meet even the most
stringent environmental permit requirements, the
PL-UV1 UV Disinfection Unit reduces bacteria
levels from secondary effluent to achieve strict
water quality standards. The PL-UV1 is unmatched
for onsite and decentralized treatment applications,
and constructed to provide reliable disinfection and
superior operational life.
APPLICATIONS
UV disinfection is routinely used in ecologically sensitive
areas where residuals from chemical disinfection might
possibly create problems in the receiving environment.
Harmful pathogens and other contaminants, including some
that are resistant to chemical disinfection, are rendered
completely harmless by the reliable performance of the
PL-UV1 UV Disinfection Unit.
FEATURES
• Dual pass design
• Weatherproof electrical
components
• Long-life UV bulb
• Easy to install
• No chemical residual or
harmful by-products
• Low electrical usage
• Inexpensive to install and operate
FLOW RATES
100 GPD through 8,640 GPD
(Gravity flow only)
REQUIRED INFLUENT
CHARACTERISTICS
100 GPD - 4,320 GPD (3 GPM)
with a 30 mg/L BOD and 30 mg/L SS
4,321 GPD - 8,640 GPD (6 GPM)
with a 10 mg/L BOD and 10 mg/l SS
UV DOSAGE
Greater than 40,000 microwatt-sec
per square cm at 254 nanometers
TRANSMISSIVITY
65%
PART NUMBER
• PL-UV1
HIGH PRESSURE FILTER
Polylok’s high pressure filter is designed for difficult
drainage environments where spreading effluent
out is needed to avoid clogging the media. This
filter will act as a second level of filtration and will
keep orifice lines clean.
FEATURES
• Housing can be mounted directly onto the discharge end
of the pump. No extra plumbing is necessary.
• Slip (glued) ports
• Filters available in heavy duty stainless steel or reinforced
plastic
• Twist & Lok cover provides both watertightness and easy
access for filter maintenance
• Extension handle is available for deep installations
• 600 micron sock included with 3014-PFP plastic filter
PART NUMBERS
• 3014-PF (Stainless steel filter)
• 3014-PFP (Plastic filter with sock)
• 3014-SOCK
(600 micron sock)
