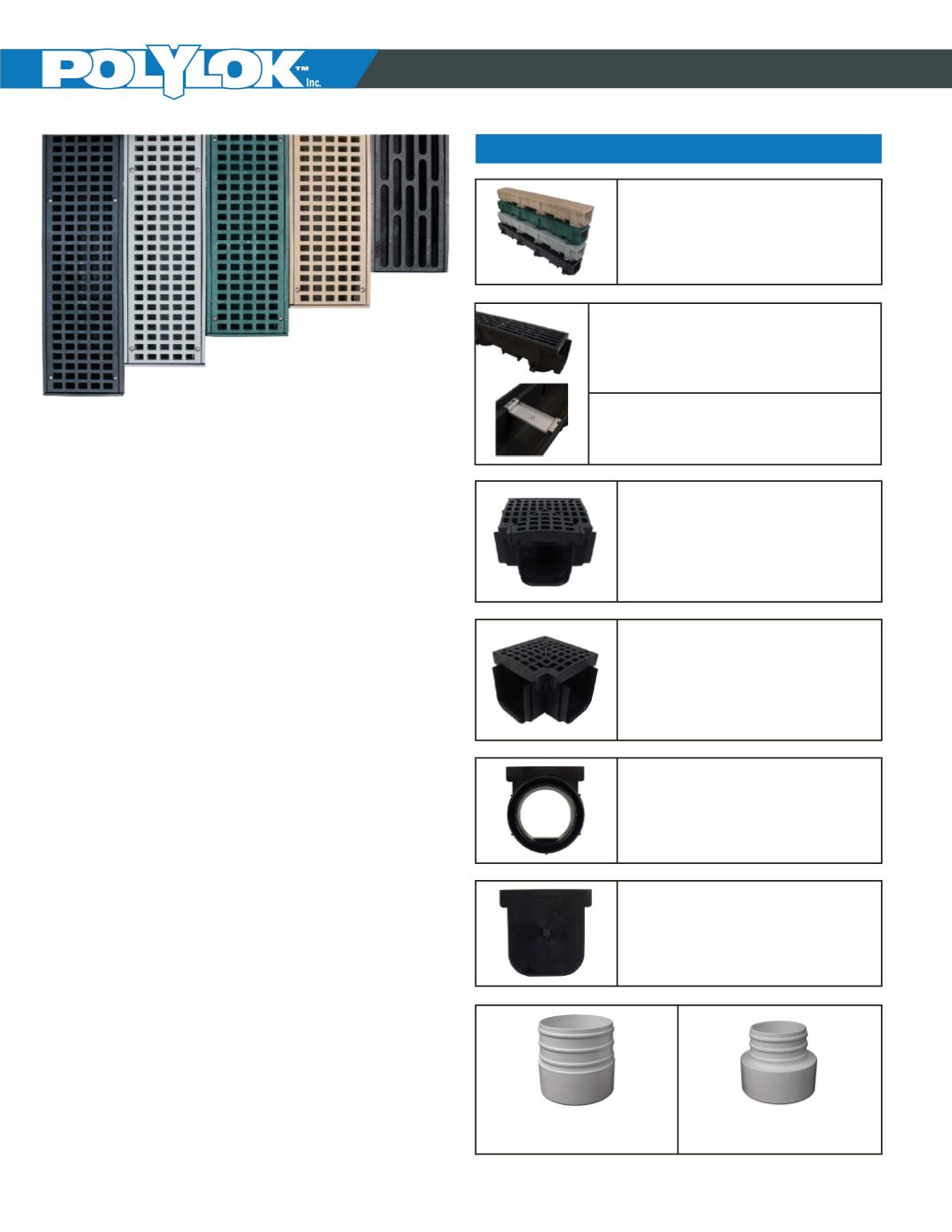

POLYLOK 4’ HEAVY DUTY

TRENCH/CHANNEL DRAIN SYSTEM

Our trench/channel drain system is engineered to

deliver the most flexibility in a heavy duty design.

The Polylok heavy duty trench/channel drain is

H-20 wheel load rated when cast in a minimum

of 4” of reinforced concrete. It offers a modular

design with interlocking components to enable

quick and easy connections. Each segment is 4’

in length and comes with a reversible ADA

compliant grate that can either be flat or allow for

a 3/16” convex surface.

Our trench/channel drain design isn’t just a great

design, it’s engineered with a smooth installation

in mind. Each 4’ segment can be joined together

or cut down to 12” increments. Each trench/channel

drain segment has eight (8) anchor positions to

allow rebar to be installed to prevent floating. There

are two sections on each 4’ trench to allow 2x4s

to be installed to aid in leveling and anchoring prior

to pouring concrete. There are four drainage ports

on each 4’ section to enable 3” and 4” SCH40 or

4” SDR35 connections. Each segment is shipped

with #8 x 1 1/4 stainless steel screws to fasten the

grates to the channel and to secure the interlocking

pieces, so there is no need to visit the hardware store.

Start using the Polylok Heavy Duty Trench/Channel

Drain system and you will never use another one...

we’re sure of it!

4’ HD Trench/Channel Drain

Part #: PL-90860 (Black)

Part #: PL-90860-G (Grey)

Part #: PL-90860-GR (Green)

Part #: PL-90860-TN (Tan)

Trench/Channel Tee

Part #: PL-90860-T (Black)

Part #: PL-90860-TG (Grey)

Part #: PL-90860-TGR (Green)

Part #: PL-90860-TAN (Tan)

Part #: PL-90860-T-DIG (Ductile)

Trench/Channel 90°

Part #: PL-90860-90 (Black)

Part #: PL-90860-90G (Grey)

Part #: PL-90860-90GR (Green)

Part #: PL-90860-90T (Tan)

Part #: PL-90860-90-DIG (Ductile)

Open Outlet End Cap

Part #: PL-90860-OE (Black)

Part #: PL-90860-OEG (Grey)

Part #: PL-90860-OEGR (Green)

Part #: PL-90860-OET (Tan)

Closed End Cap

Part #: PL-90860-CE (Black)

Part #: PL-90860-CEG (Grey)

Part #: PL-90860-CEGR (Green)

Part #: PL-90860-CET (Tan)

4” Corrugated Adapter

Part #: PL-90860-V44

3” Corrugated Adapter

Part #: PL-90860-A43

4’ Ductile Trench/Channel Drain

Part #: PL-90860-CI (Black)

(Trench/Channel Drain, Ductile Grate

& Mounting Hardware)

2’ Ductile Grates & Hardware

Part #: PL-90860-DIG (Black)

(Ductile Grate & Mounting Hardware)

PART NUMBERS

1-877-765-9565

WWW.POLYLOK.COM

HEAVY DUTY TRENCH/CHANNEL DRAIN SYSTEM

TECHNICAL SPECIFICATIONS: PAGE 137 - 141
